4G Connect Pro Model - Digital Yacht

4G Connect Pro Model - Digital Yacht

Regular price $1,169.96 USD
Regular price Sale price $1,169.96 USD
Sale Sold out
KEY FEATURES

4G Connect is a 4G (LTE) internet solution for boats. It uses the latest MIMO technology with dual antennas for fast, long-range access and has a full-function WiFi router, allowing multiple devices to connect wirelessly. It also has wired LAN and WAN ports for connection to high-power WiFi devices or satellite modems.

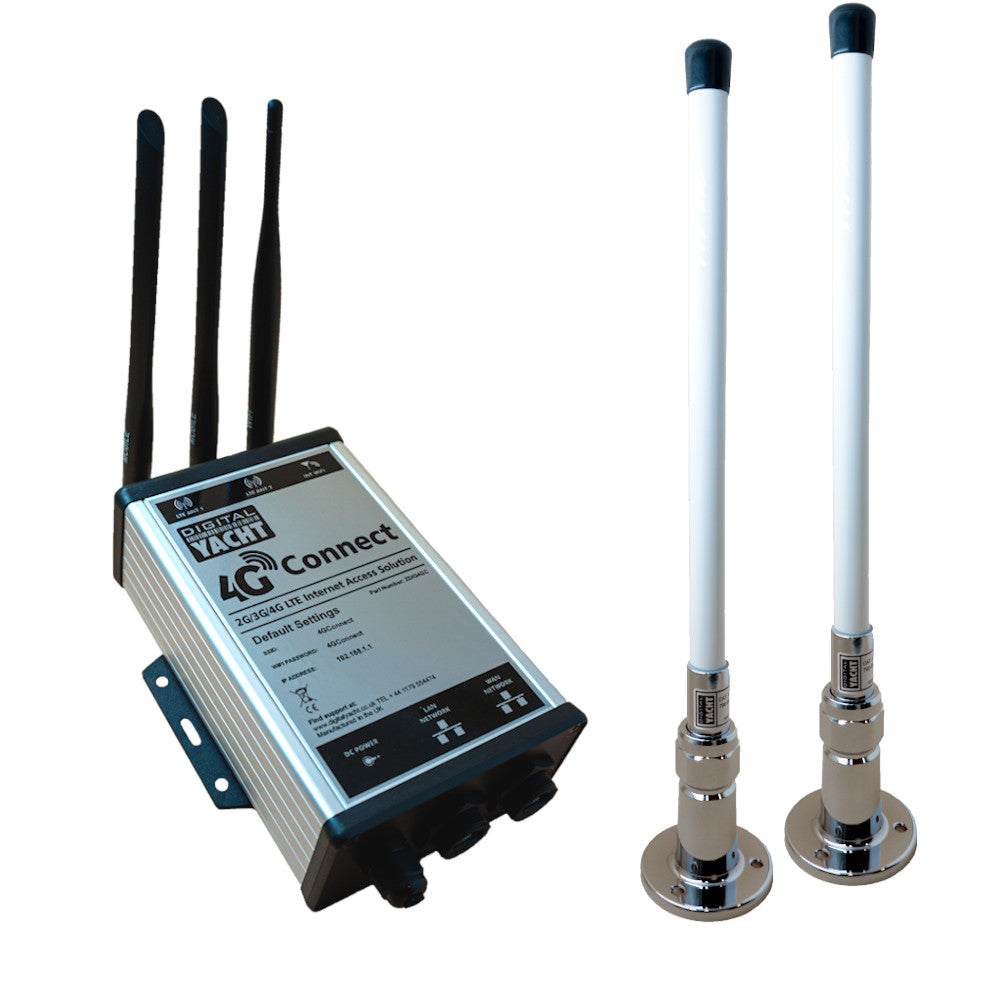

The Pro model includes two external high-gain antennas for excellent long-range performance, making it ideal for use afloat.

4G Connect is unlocked, allowing you to use any mobile provider's SIM card. However, during testing, Vodafone's lower frequencies and competitive European data roaming allowance proved ideal for European cruising yachtsmen.

Operation is simple: turn on, connect to the password-protected WiFi hotspot created by 4G Connect, and your device is online. Digital Yacht’s WL510 high-power WiFi solution can also be connected to the WAN port for a choice between hotspot WiFi and 4G connectivity. iKommunicate can also connect to the LAN port, providing boat NMEA data on the WiFi network for use with navigation apps.

Download the 4G Connect presentation here.

The 4G Connect Pro comes with a 23ft (7m) cable kit, but if you need longer cables, you can add the 33ft (10m) or 66ft (20m) cable kits to your cart.

FEATURES

  • High-performance 4G/LTE modem for exceptional speed and range, with fallback to 2G/3G.
  • SIM unlocked for any network provider.
  • Two high-performance external antennas for optimum speed and range.
  • 23ft (7m) low-loss LMR 200 cable kit included.
  • Deck base for antennas.
  • LTE Class 3 modem offers up to 70Mbps speed.
  • Recommended for offshore use and non-GRP vessels.
  • WiFi interface for tablets and phones.
  • Ethernet LAN and WAN ports for additional connectivity options.
  • 12V DC operation with <5W power consumption.
  • Optional 1-inch base adaptor for antennas.
  • Optional 33ft and 66ft LMR400 cable assemblies.

TECHNICAL SPECIFICATIONS

Power 9-30v DC (<5W)
Operating Temp -40 to +75°C
Physical Main unit: 180 x 125 x 55mm (excluding antennas). Weight: 670g. Protection: IPX4.
4G/LTE CAT 4 up to 70Mbps. Class 3 Modem with up to 25dBm output. Supports multiple LTE and UMTS bands. Dual MIMO antennas.
Interfaces 1 x LAN 10/100 Ethernet Port, 1 x WAN 10/100 Ethernet Port, WiFi 802.11b/g/n with 64/128-bit WEP/WPA/WPA2 encryption.
