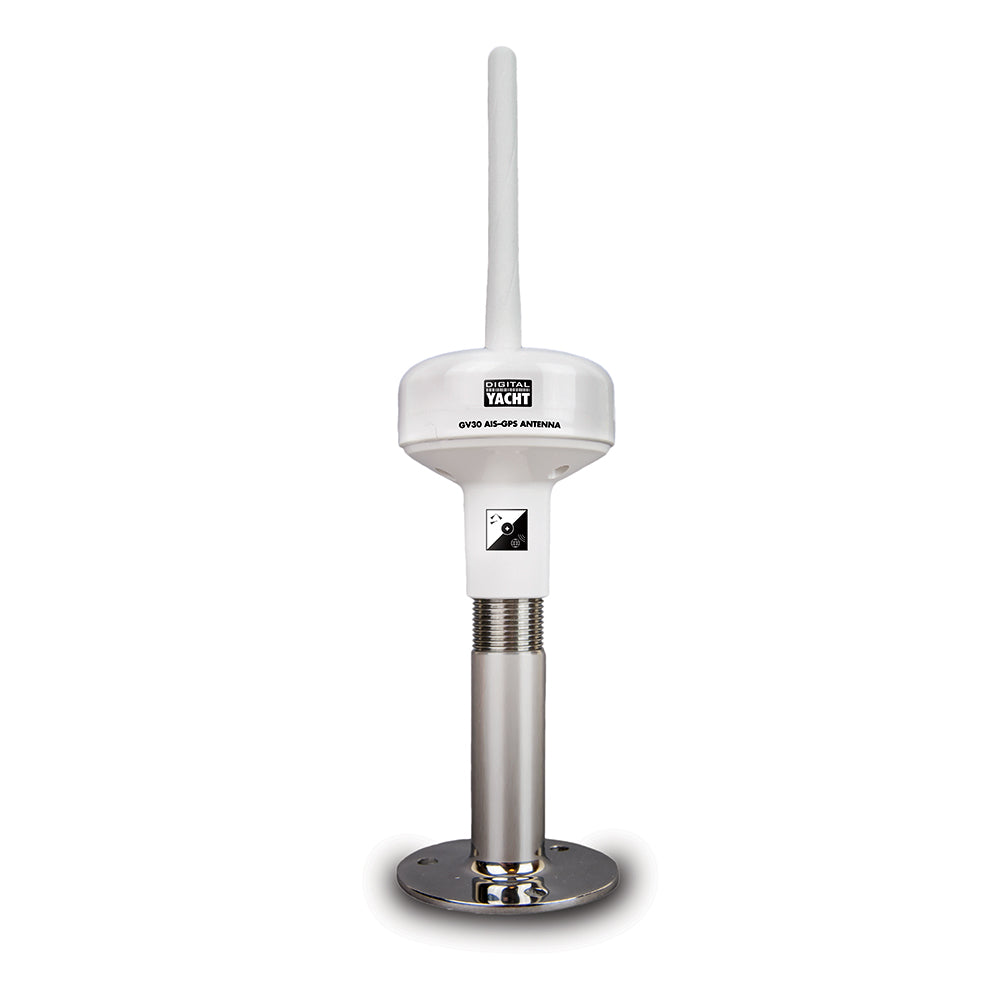

Gv30 – AIS VHF GPS Antenna - Digital Yacht

Combination AIS/VHF and GPS antenna for Class B transponders which makes for a super quick and high performance installation.

KEY DESCRIPTION

A Class B AIS transponder requires a dedicated GPS antenna (all Class B units must have their own internal GPS and can’t use an external feed for regulatory purposes) as well as a VHF antenna or suitable VHF-AIS antenna splitter. The GV30 is a combination VHF/AIS and GPS antenna with twin coax feeds (33 ft).

It’s fitted with a standard 1” threaded base so will mount onto a variety of deck, pole and rail attachments available here. The 33 ft coax cables are terminated with a FME mini connector which makes running the cable easy as the connector is barely bigger than the 5mm cable. We then supply suitable adaptors for the TNC and BNC connectors on our AIT2000. The GV30 is just 7 inches high and 3 inches in diameter.

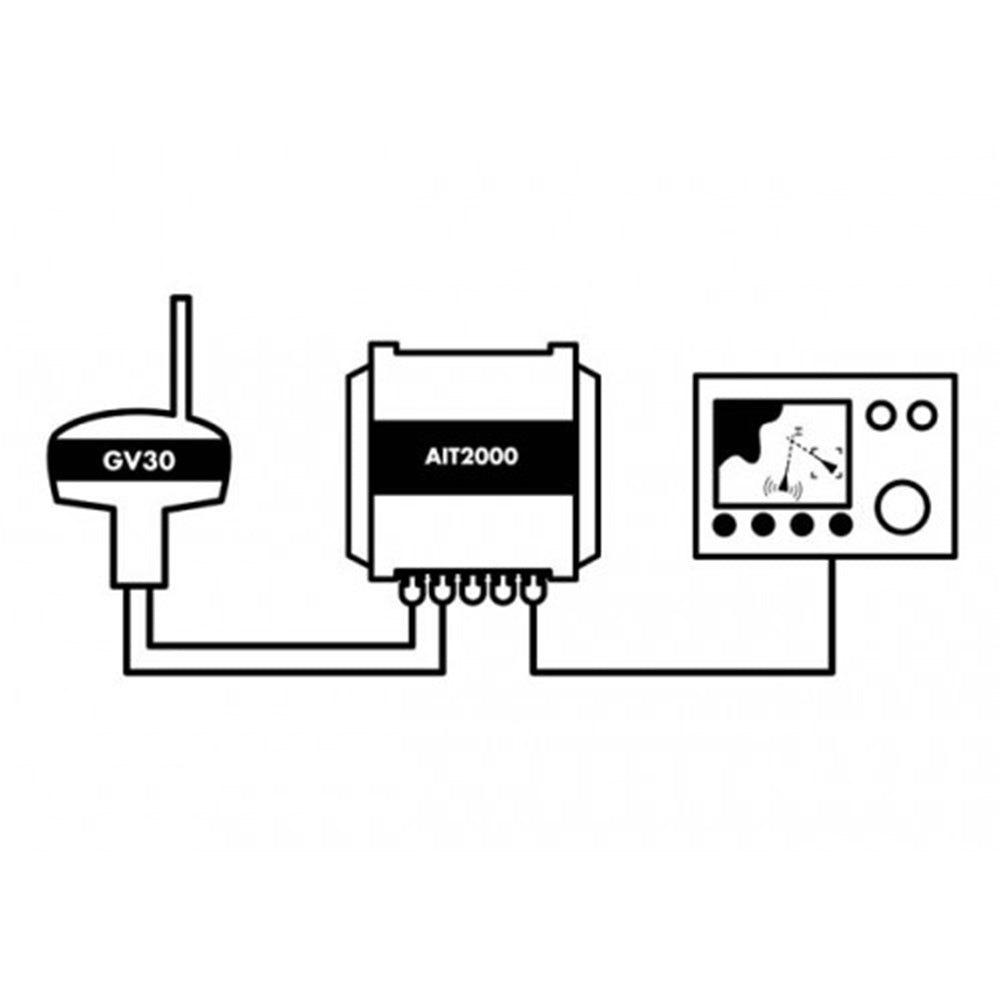

Despite its compact dimensions, it offers very good performance as its specifically tuned to 162MHz (AIS frequency). The GV30 is also available with the AIT2000 as a bundle.

FEATURES

• Combination AIS/VHF and GPS antenna
• Specifically tuned to 162MHz
• High gain GPS element
• Supplied with 2 x 33ft cable tails fitted with mini connectors for easy cable installation
• Standard 1” threaded base for compatibility with a variety of mounts available here
• Supplied with TNC (GPS) and BNC (AIS) adaptors
• Under 8 inches high for low profile installation
