Emergency Pontoon Ladder

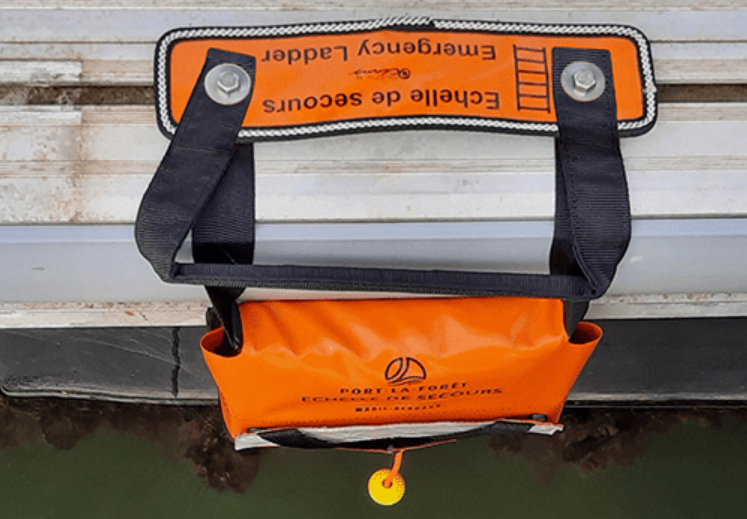

Mounting: Fixed securely to pontoon rails using stainless steel eyelets. Positions over the rigid identification plate, near the cleat, and above the pontoon float.

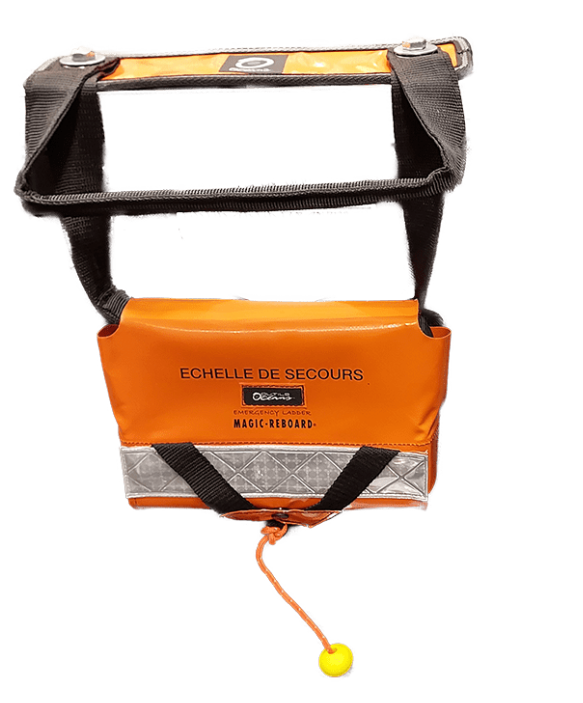

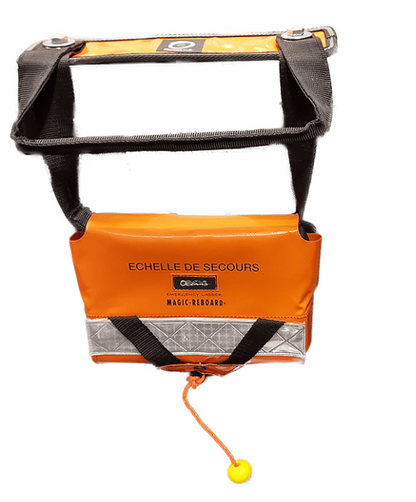

Handle: Extends outward from the pontoon for easy access and climbing.

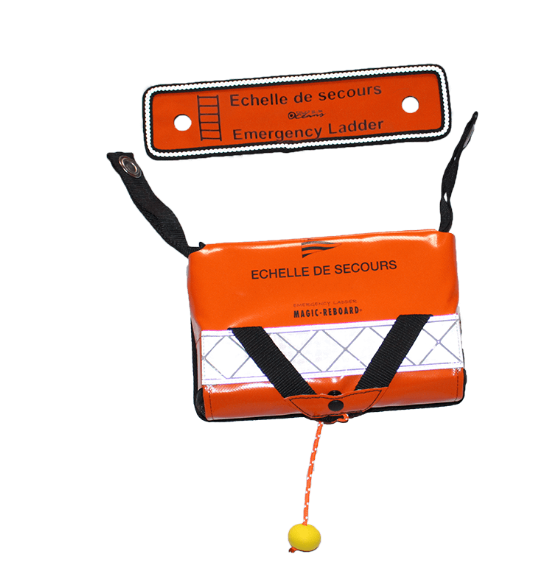

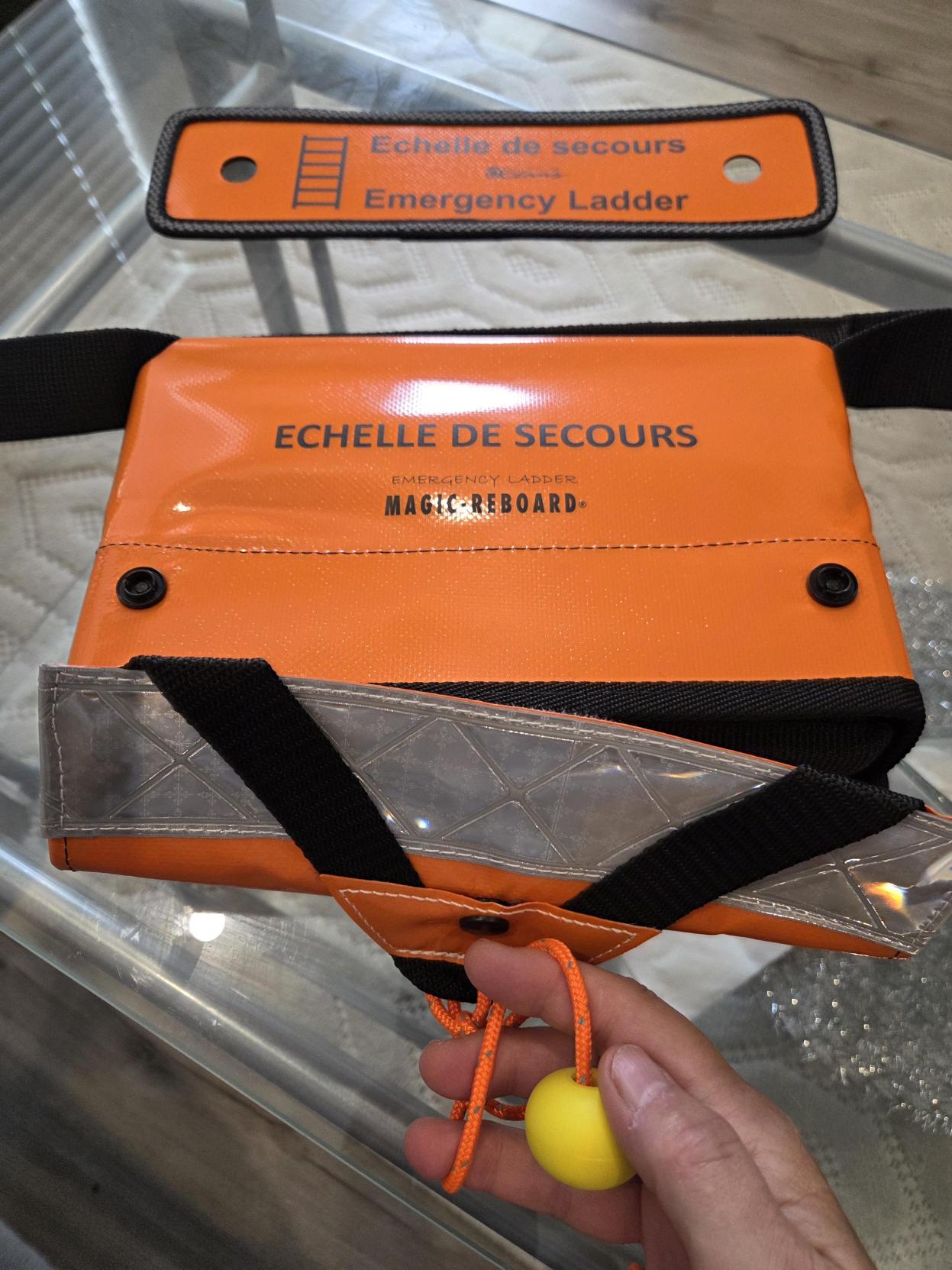

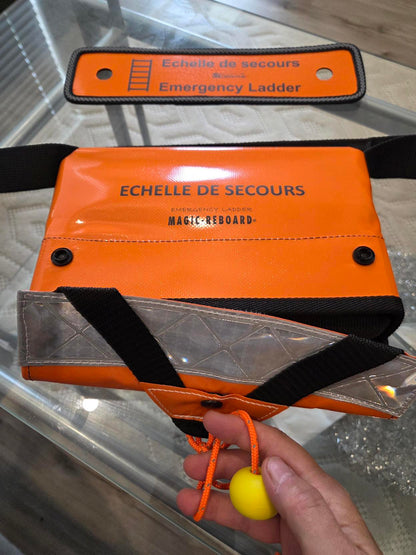

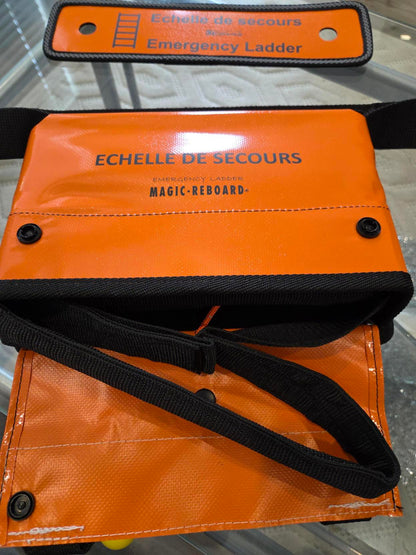

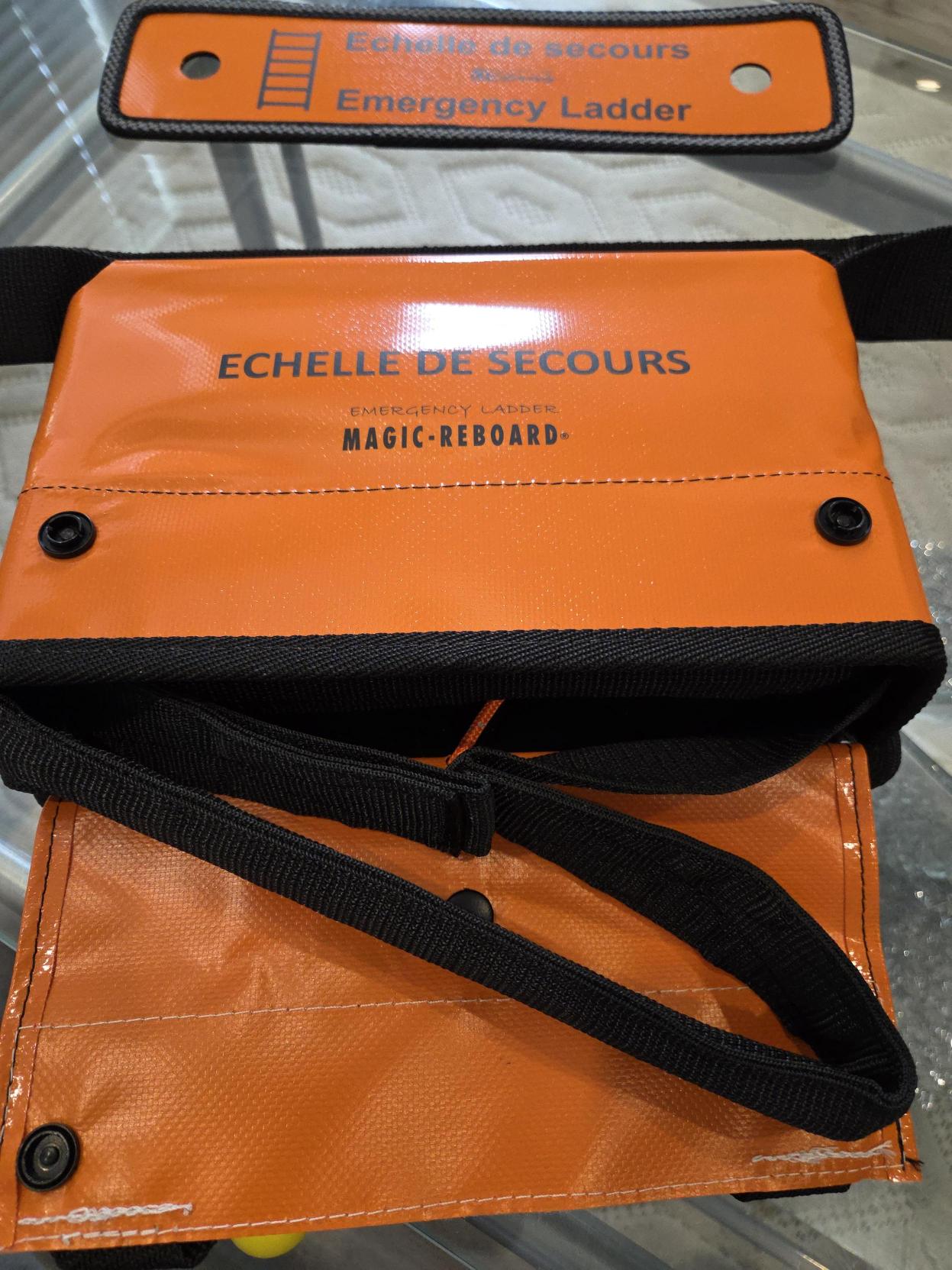

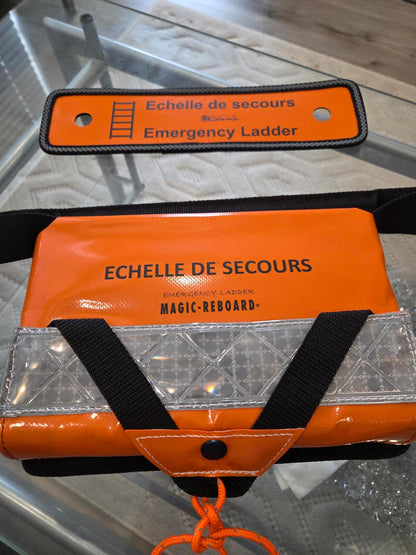

Case: Open-ended with a flap closure secured by snap buttons.

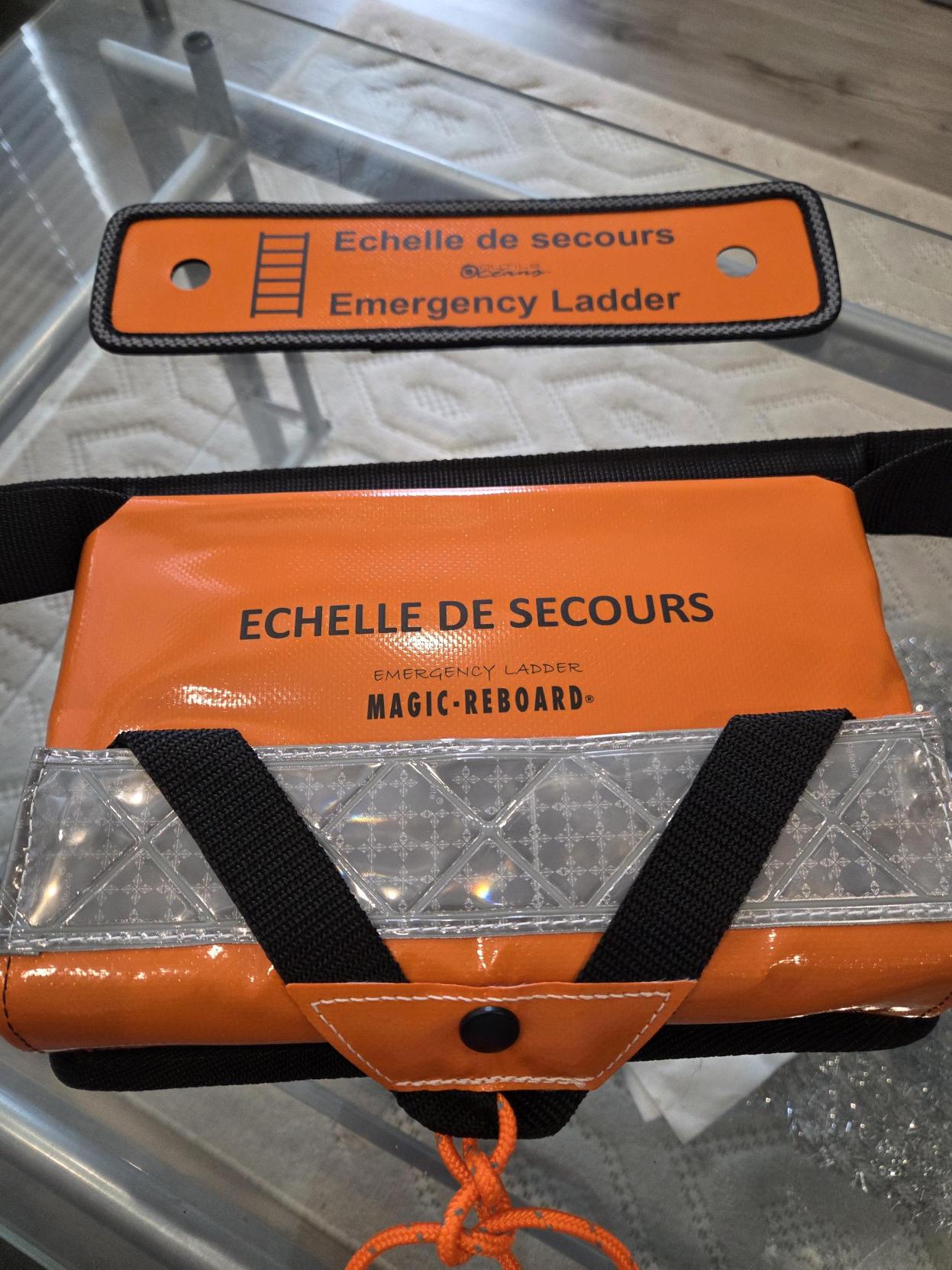

Visibility: Equipped with reflective tape for high visibility.
Activation: The ladder is triggered by a cord for quick deployment.
Materials:
Ladder: Made of durable polyester webbing with rigid reinforcement for strength and stability.
Case: Crafted from high-resistance polyester coated with PVC on both sides. The back is made from polyethylene, with reflective polypropylene webbing on the edges for enhanced visibility.
Hardware: Stainless steel eyelets with a 14mm diameter ensure durability and secure attachment.
Dimensions:
Case Size: L41 x H49 x W10.5 cm
Maximum Ladder Dimensions: L27 x H190 cm.
Key Features:
Simplicity and Functionality:
The Emergency Pontoon Ladder is designed to provide a safe and user-friendly solution for boarding pontoons in emergencies. Its high-visibility orange colour and reflective tape make it easily identifiable, while the rigid identification plate ensures it stands out on the pontoon for quick recognition.

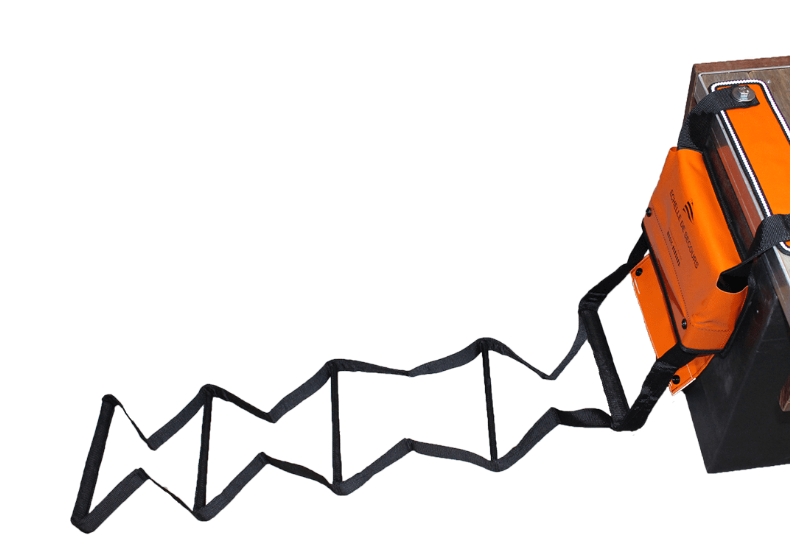

Easy Operation: The ladder deploys quickly when the activation cord is pulled from the water. Once fully deployed, at least 4 rungs (1.20m) are submerged to ensure safe reboarding.
Ideal Placement: Designed to be placed facing the pontoon float for maximum accessibility and functionality.
Climbing Ease: The wide, rigid rungs provide stable footing, making it easier to climb back on board.
Clear Pontoon Access: The design ensures the pontoon remains clear for passing ropes, electrical cables, and other equipment.
Safety and Compliance:
Regulatory Compliance: The ladder conforms to the EN/ISO 15085 standard for boarding rescue ladders and complies with the European Directive 2013/53/EU, ensuring it meets safety requirements for various types of pontoons
